Details
•

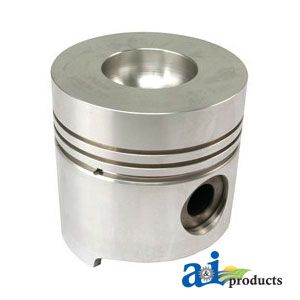

3 Ring Piston
Replaces
1902430, 1909436, 79037501, 1901310, 1909151, 1901283
Dim A (1)
4.023" Crown Dia.
Dim B (2)
2.348" Compression Height
Dim C (3)
3.978" Overall Height
Dim D (4)
1.970" Chamber Dia.
Dim E (5)
.883" Chamber Depth
Dim F (6)
1.337" Piston Pin Dia.
Cross References:
Replaces:
VPB2826
VAPORMATIC
1901283
FIAT
1901310
FIAT
1902430
FIAT
1909151
FIAT
1909436
FIAT
79037501
FIAT
Fits the following makes and models:
Fiat TRACTOR: 1000 SUPER (W/ 8065.04 ENGINE)
Fiat TRACTOR: 1000DT SUPER (W/ 8065.04 ENGINE)
Fiat TRACTOR: 1180 (W/ 8065.04 ENGINE)
Fiat TRACTOR: 1180DT (W/ 8065.04 ENGINE)
Fiat TRACTOR: 566 (W/ 8035.04 ENGINE)
Fiat TRACTOR: 566DT (W/ 8035.04 ENGINE)
Fiat TRACTOR: 570 (W/ 8035.04 ENGINE)
Fiat TRACTOR: 570DT (W/ 8035.04 ENGINE)
Fiat TRACTOR: 580 (W/ 8035.04 ENGINE)
Fiat TRACTOR: 580DT (W/ 8035.04 ENGINE)
Fiat TRACTOR: 766 (W/ 8045.04 ENGINE)
Fiat TRACTOR: 766DT (W/ 8045.04 ENGINE)
Fiat TRACTOR: 780 (W/ 8045.04 ENGINE)
Fiat TRACTOR: 780DT (W/ 8045.04 ENGINE)
Fiat TRACTOR: 880-5 (W/ 8055.04 ENGINE)
Fiat TRACTOR: 880-5DT (W/ 8055.04 ENGINE)
Additional Information
| shipping_weight | 3.6100 |
|---|
 |
