Details
Our new radiator is designed and built to precise dimensional specifications to ensure an exact fit.
Each radiator has a stamped brass tank, undergoes a rigorous quality inspection, and is 100% leak
tested. This radiator has 7 fins per inch, 3 rows of tubes, is 18.375" tall, and the core size is
17.5" wide. It is for applications with hinged swing out oil coolers. This radiator fits multiple
Case-IH models and is for diesel engines only. (NOTE: Radiator does not include side mounting
brackets. OEM radiators do not include brackets. Brackets from original radiator will need to be
used.)
•
For applications w/ hinged swing out oil coolers. For applications w/ bolt on oil cooler use part #
1536373C1. Requires drain cock 3113083R1. Radiator does not have brackets on sides which the side
panels mount on, nor does the OEM. Brackets need to be removed from old radiator.
Replaces
3121412R91, 3121413R91, 3121414R92

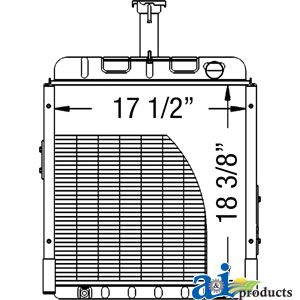

Dim A (1)
Core Size: 17.50" Wide
Dim B (2)
18.375" High
Dim C (3)
3 Rows of Tubes
Dim D (4)
7 Fins per Inch
Cross References:
Replaces:
3121412R91
CASE/INTERNATIONAL HAR.
3121413R91
CASE/INTERNATIONAL HAR.
3121414R91
CASE/INTERNATIONAL HAR.
Crossed From:
3121414R92
IH - CASE
Fits the following makes and models:
Case-IH INDUSTRIAL/CONSTRUCTION: 380B
Case-IH TRACTOR: HYDRO 84
Case-IH TRACTOR: 385 (W/ 2WD)
Case-IH TRACTOR: 484
Case-IH TRACTOR: 485
Case-IH TRACTOR: 584 (SN 8271->)
Case-IH TRACTOR: 585 (W/O A/C)
Case-IH TRACTOR: 684
Case-IH TRACTOR: 685 (W/O A/C)
Case-IH TRACTOR: 784
Case-IH TRACTOR: 885 (W/O A/C)
Additional Information
| shipping_weight | 25.0000 |
|---|
 |
