Details
•
Vertical / Oval Body - 6 1/2" X 10 1/2" Shell Dimension. MUFFLER IS BASE PLATE MOUNTED - 3 HOLES,
Muffler Has 1" DiameterSide Aspirator Tube, Uses A181267 Extension Pipe

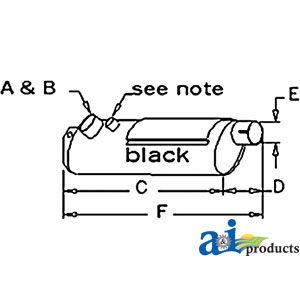

Dim A (1)
A: 3" INLET LENGTH
Dim B (2)
B: 3 1/2" INLET I.D.
Dim C (3)
C: 26 1/2" SHELL LENGTH
Dim D (4)
D: 4 1/2" OUTLET LENGTH
Dim E (5)
E: 4 1/8" OUTLET O.D.
Dim F (6)
F: 31" OVERALL LENGTH
Cross References:
Crossed From:
C22
STANLEY MUFFLER
Fits the following makes and models:
Case-IH TRACTOR: 2090 (W/ DIESEL ENGINE - 1978>)
Case-IH TRACTOR: 2094 (Side Inlet, Aspirated)
Case-IH TRACTOR: 2290 (W/ DIESEL ENGINE - 1978>)
Case-IH TRACTOR: 2294 (Side Inlet, Aspirated)
Additional Information
shipping_weight | 25.0000 |
---|
