Details

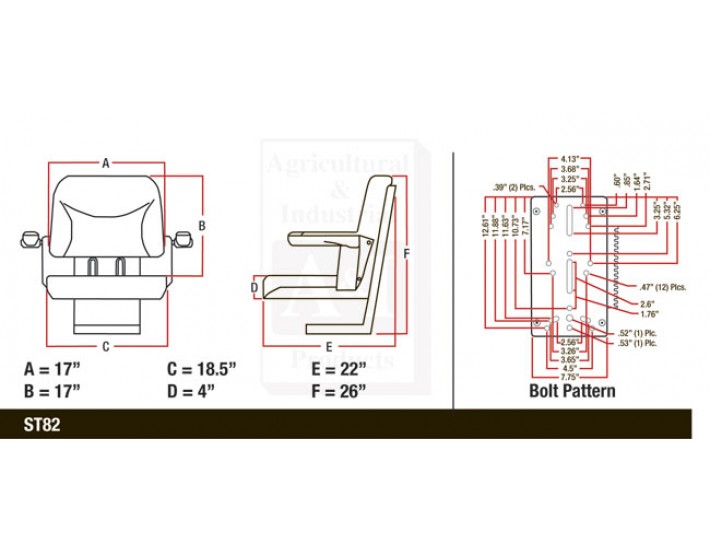

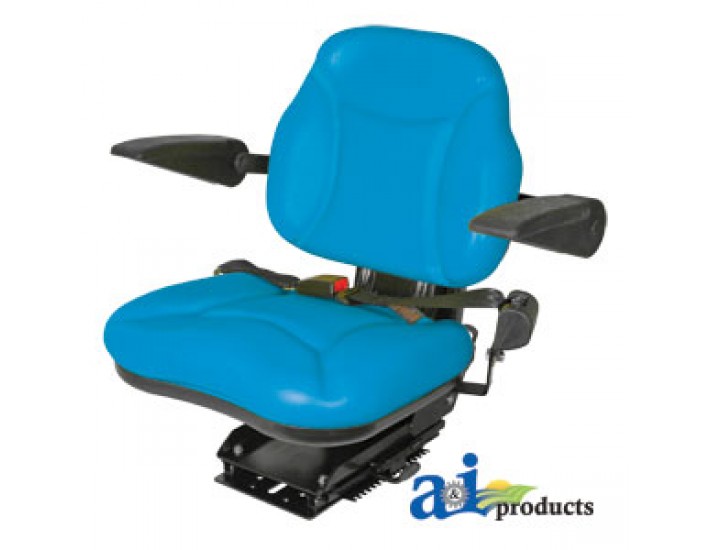

Big Boy seat is a universal replacement vinyl seat. 3 position angle mounting, slide track, and
weight adjustment. Seat utilizes 2 springs and 1 shock. 29" wide outside to outside of arm rests.
From floor to top of back rest is 25.50". From floor to top of seat cushion is 12.250". Cushion is
18.00" wide by 15.00" from front to back. Does not have provision for operators presence switch.
Dim A (1)
3 Position Angle Mounting
Dim C (3)
Weight Adjustment
Dim D (4)
Seat Belt Included
Fits the following makes and models:
Ford / New Holland TRACTOR: SEVERAL
