Details

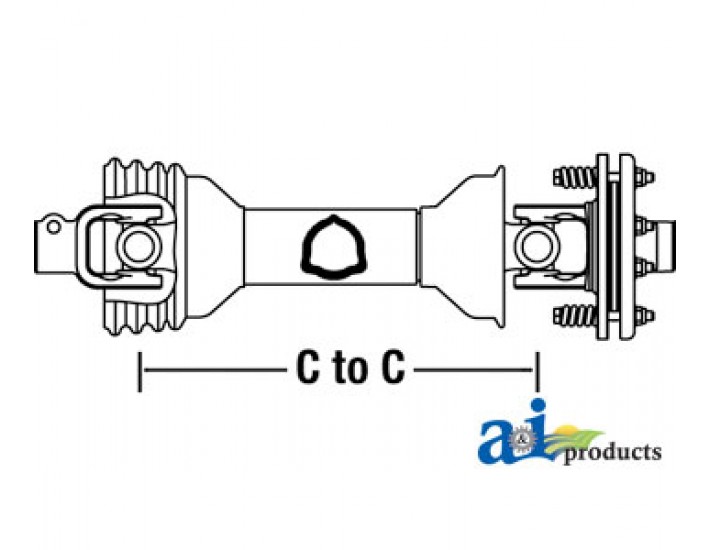

Complete Driveline. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 75" (1910 mm),
Total Collapsed Length: 55" (1400 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6
Spline. Replaces: Bondioli & Pavesi No. BP112100101. NOTE: It may be necessary to cut this driveline
to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all
working positions without the possibility of bottoming out. Fits Bondioli & Pavesi 100 Series: Size
1.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Bondioli Part No: BP112100101
Total Collapsed Length
1400MM/ 55"
Cross References:
Crossed From:
SW06328
JOHN DEERE EDI
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 1
