Details

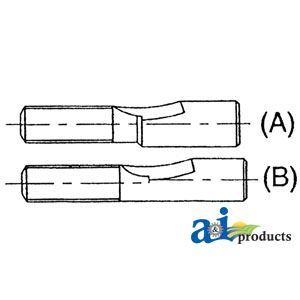

New Tapered Pin Kit. Kit includes 3 pins and 2 nuts. (Kit uses the pin which fits completely into
the hub until the threads protrude). Pin size 1-3/4" - 6 Spline x 1-3/4" - 20 Spline. Torque @ 160
ft-lbs (220 Nm)Used for FF Clutches. Replaces Bondioli & Pavesi No. BP408000076.
•
Use The Pin Which Fits Completely Into The Hub Until The Threads Protrude. (Discard The Pin Which
Does Not Fit)
•
Torque @ 160 ft-lbs (220 Nm)
Replaces
Bondioli Part No: BP408000076
Includes
3 pins and 2 nuts = washer
Size
1 3/4"- 6 x 1 3/4"- 20
Used For
FF Clutches
Quantity Required
1
Cross References:
Replaces:
BP408000046
BONDIOLI & PAVESI
BP408000061
BONDIOLI & PAVESI
408000061
BONDIOLI & PAVESI
86522BH
BUSH HOG
Crossed From:
BP408000041
EDCOR
SW07763
JOHN DEERE EDI
Fits the following makes and models:
Bush Hog ROTARY CUTTER: 3610
Bush Hog ROTARY CUTTER: 3615
Bondioli & Pavesi FF1: Size 3 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF1: Size 4 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF1: Size 4 3 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF1: Size 5 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF1: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF2: Size 5 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF2: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF2: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF2: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF3: Size 5 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF3: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF3: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF3: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF4: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF4: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF4: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF4: Size 9 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FF4: Size 10 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT42: Size 5 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT42: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT42: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT44: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT44: Size 9 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FT44: Size 10 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV42: Size 5 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV42: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV42: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV42: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV44: Size 6 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV44: Size 7 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV44: Size 8 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV44: Size 9 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi FV44: Size 10 (W/1 3/4" 6/20 Spline Hub)
Bondioli & Pavesi SFT EL Free Rotate Series: Size S2
Bondioli & Pavesi SFT EL Free Rotate Series: Size S4
Bondioli & Pavesi SFT EL Free Rotate Series: Size S6
Bondioli & Pavesi SFT EL Series: Size H8
Bondioli & Pavesi SFT EL Series: Size S2
Bondioli & Pavesi SFT EL Series: Size S4
Bondioli & Pavesi SFT EL Series: Size S6
Bondioli & Pavesi SFT EL Series: Size S8
Bondioli & Pavesi SFT 80 EL CV Free Rotate: Size S2 CV
Bondioli & Pavesi SFT 80 EL CV Free Rotate: Size S4 CV
Bondioli & Pavesi SFT 80 EL CV Series: Size H8 CV
Bondioli & Pavesi SFT 80 EL CV Series: Size S2 CV
Bondioli & Pavesi SFT 80 EL CV Series: Size S4 CV
Bondioli & Pavesi SFT 80 EL CV Series: Size S6 CV
Bondioli & Pavesi SFT 80 EL CV Series: Size S8 CV
Additional Information
| shipping_weight | 0.5600 |
|---|
 |
