Details

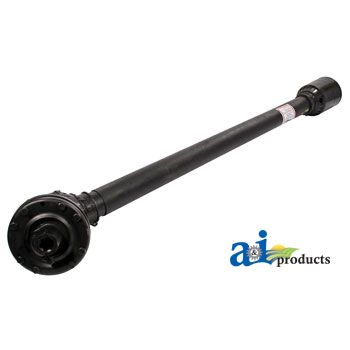

New Complete Batwing Mower Driveline with Clutch. Minimum C-to-C Length: 55" (1400 mm), Maximum
C-to-C length: 71" (1829 mm), and Total collapsed length: 66" (1670 mm). Tractor yoke end is 1-3/8"
6 spline, implemeny yoke is 1-3/8" 6 spline clutch. Replaces Bondioli & Pavesi No. 6140001FF2. Fits
Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Bondioli Part No: BP6140001FF2
Size
6
Total Collapsed Length
1670 MM/ 66"
Tractor
1 3/8" - 6
Implement
1 3/8" - 6 Clutch
C to C Min
1400 MM/ 55"
C to C Max
1820 MM/ 71"
Cross References:
Replaces:
BP81C6140FX014
EDCOR
50058535
BUSH HOG
64941
BUSH HOG
83347
BUSH HOG
Crossed From:
SW06415
JOHN DEERE EDI
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 6
Additional Information
