BP6140002FF2 - Batwing Mower Wing Shafts

Qty in Stock: 17

$1,104.71


Is this the correct part for your application? Check the Part Diagrams.
Details

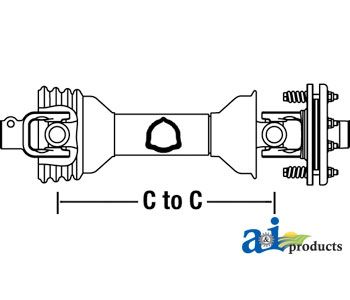

New Batwing Mower Wing Shaft, size 6. Minimum C-to C Length: 55" (1400 mm), Maximum C-to-C Length: 71" (1820 mm), Total collapsed length: 66" (1670 mm). Tractor end: 1-3/8" 21 Spline, Implement end: 1-3/8" 21 Spline with 7" clutch. Replaces Bondioli & Pavesi No. 6140002FF2. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Bondioli Part No: BP6140002FF2
Size
6
Total Collapsed Length
1670 MM/ 66"
Tractor
1 3/8" - 21
Implement
1 3/8" - 21 Clutch
Clutch Diameter
7"
C to C Min
1400 MM/ 55"
C to C Max
1820 MM/ 71"



Cross References:

Replaces:
AW27991
JOHN DEERE
AW29542
JOHN DEERE
Crossed From:
SW06416
JOHN DEERE EDI



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 6
Additional Information
shipping_weight 65.3000
