BP6140003FF2 - Batwing Mower Wing Shafts

Qty in Stock: 0

$1,146.64


Is this the correct part for your application? Check the Part Diagrams.
Details

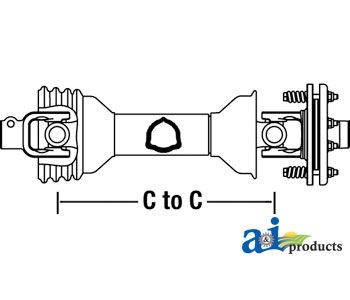

New Complete Batwing Wing shaft, size 6. This is a complete replacement, original equipment components will not interchange. Driveline minimum C-to-C length: 55" (1400 mm), Maximum C-to-C length: 71" (1820 mm), Total collapsed length: 66" (1670 mm). The driveline yoke is a 1-3/4" long with 20 splines. The implemeny end is a 1-3/4" 20 spline clutch. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
6
Total Collapsed Length
1670 MM/ 66"
Tractor
1 3/4" - 20
Implement
1 3/4" - 20 CLUTCH
C to C Min
1400 MM/ 55"
C to C Max
1820 MM/ 71"



Cross References:

Replaces:
BP6160003FF2
DRIVELINE
BP81C6140FX014X
EDCOR
02981677
MISCELLANEOUS
76990
BUSH HOG
826-185C
LAND PRIDE
Crossed From:
SW06417
JOHN DEERE EDI



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 6
Additional Information
shipping_weight 61.8000
