BP812100101 - Complete Regular Shafts

Qty in Stock: 5

$1,061.99


Is this the correct part for your application? Check the Part Diagrams.
Details

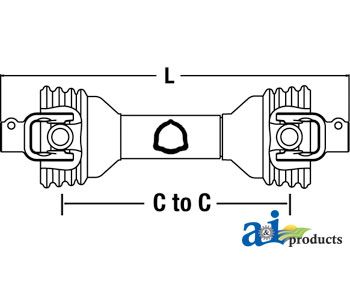

New Complete Driveline with spline end yokes, size 8. Minimum C-to C Length: 48" (1210 mm), Maximum C-to-C Length: 74" (1880 mm), Total collapsed length: 58" (1455 mm). Tractor end: 1-3/8" 6 Spline, Implement end: 1-3/8" 6 Spline. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
8
Total Collapsed Length
1455MM/ 58"
Tractor
1 3/8" - 6
Implement
1 3/8" - 6
C to C Min
1210 MM/ 48"
C to C Max
1880 MM/ 74"



Cross References:

Replaces:
BP7108101FFT07
EDCOR
BP7108121FFT07
EDCOR
Crossed From:
SW05747 SW06289
JOHN DEERE EDI
SW06289
JOHN DEERE EDI



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 8
Additional Information
shipping_weight 56.2300
