Details

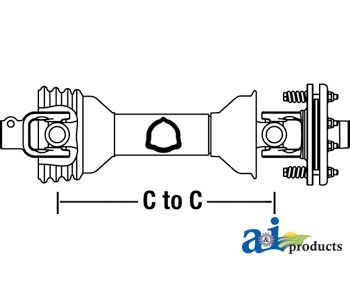

New Batwing Mower Wing Shaft, size 8. Shaft minimum C-to-C length: 67" (1710 mm), Maximum C-to-C
length: 87" (2210 mm), Overall collapsed length: 80" (2026 mm). Tractor yoke is 1-3/4" with 20
splines. Implement yoke is a 1-3/4" 20 spline clutch. Replaces Bondioli & Pavesi No. 8160003FF3.
Fits Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Bondioli Part No: BP8160003FF3
Size
8
Overall Collapsed Length
2026 MM/ 80"
Tractor
1 3/4" - 20
Implement
1 3/4" - 20 Clutch
C to C Min
1710 MM/ 67"
C to C Max
2210 MM/ 87"
Cross References:
Replaces:
BP81C8171FX017
EDCOR
00757375A
RHINO
00775343
RHINO
50058537
BUSH HOG
50058539
BUSH HOG
826-262C
LAND PRIDE
Crossed From:
SW06495
JOHN DEERE EDI
76637
BUSH HOG
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 8
