Details

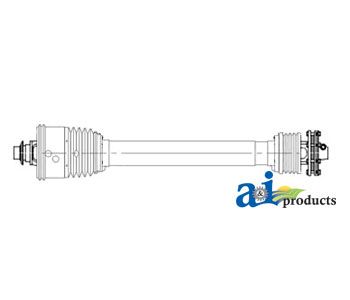

Complete Constant Velocity Driveline with Friction Clutch. The front half will rotate up to 60
degrees allowing easy tractor hook-up. C-to-C Length: 48" (1210mm). Total Length: 64" (1622 mm).
Tractor yoke: 1-3/8" - 6 Spline, Implement Clutch: 1-3/8" - 6 Spline. NOTE: It may be necessary to
cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive
tubes exists in all working positions without the possibility of bottoming out. Fits Bondioli &
Pavesi SFT 80 EL CV Free Rotate: Size S6 CV.
•
The Front Half Will Rotate Up To 60 Degrees Allowing For Easy Hook-Up To The Tractor.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Tractor
1 3/8" - 6
Implement
1 3/8" - 6 Clutch
Total Length
1622 MM/ 64"
C to C
1210 MM/ 48"
Cross References:
Replaces:
103692001
VERMEER
507534001
DRIVELINE
68771001
DRIVELINE
86938001
DRIVELINE
Fits the following makes and models:
Bondioli & Pavesi SFT 80 EL CV Free Rotate: Size S6 CV
