CS24314 - Driveline, Economy Rotary Cutter

Qty in Stock: 7

$186.09


Is this the correct part for your application? Check the Part Diagrams.
Details

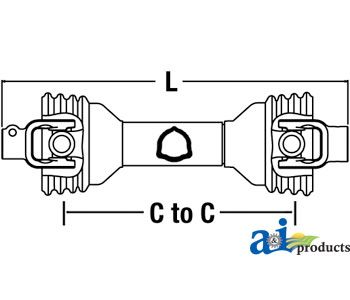

100 Series Economy Driveline. Driveline minimum C-to-C is 43" (1100 mm), maximum C-to-C length is 67" (1700mm), total collapsed length is 51" (12955 mm). Tractor ends: 1-3/8" 6 Spline and implement ends are 1-3/8" round bore with 1/2" pin hole. Driveline rated as category 2 (20 hp). Fits Bondioli & Pavesi Size 2.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
•  Use a grade 2 shear bolt (RCSBKT). The use of a harder grade bolt will void the warranty.
Size
2
Total Collapsed Length
1295 mm/ 51"
Tractor
1 3/8" -6
Implement
1 3/8" RB 1/2" PH
C to C Min
1100 mm/ 43"
C to C Max
1700 mm/ 67"
Type
Pull/Towed
Series
100
Category
2 (20HP)



Cross References:

Replaces:
PM14006251
JOHN DEERE
14006251
DRIVE-LINE
Crossed From:
AB2111WY
TISCO
W14006251DS
CASE/IH



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 2
Additional Information
shipping_weight 23.0000
