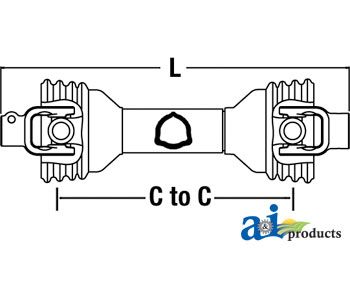

CS24414 - Driveline, 1 3/8" 6 Spline X 1" Rb W/Kw

Availability: Out of stock

$165.81
Is this the correct part for your application? Check the Part Diagrams.
Details
Complete Economy Driveline. Minimum C-to-C Length: 44" (1120 mm), Maximum C-to-C Length: 67" (1710 mm), Total Collapsed Length: 52" (1320 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1" round bore, 1/4" KW. Series: 100. Category 2 (20 hp). Fits Bondioli & Pavesi 100 Series. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Includes
Set Screw
Size
2
Total Collapsed Length
1320 mm/ 52"
Tractor
1 3/8" -6
Implement
1" RB 1/4" KW
C to C Min
1120 mm/ 44"
C to C Max
1710 mm/ 67"
Series
100
Category
2 (20HP)



Cross References:

Replaces:
BP102-1120-A
EDCOR



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 2
Additional Information
shipping_weight 21.5000
