Details

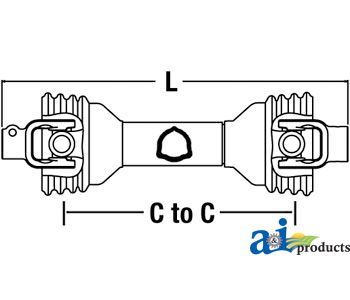

Post Hole Digger Driveline Assembly, size 2. Driveline minimum C-to-C is 44" (1120 mm), maximum
C-to-C length is 67" (1700mm), total collapsed length is 52" (1320 mm). Tractor ends: 1-3/8" 6
Spline and implement ends are 1-1/4" round bore with 3/8" pin hole. Driveline rated as category 2
(20 hp). Fits Bush Hog, Land Pride, and Rhino Post Hole Diggers.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
2
Total Collapsed Length
1320 mm/ 52"
Tractor
1 3/8" -6
Implement
1 1/4" RB WITH 3/8" PH
C to C Min
1120 mm/ 44"
C to C Max
1710 mm/ 67"
Category
2 (20HP)
Cross References:
Replaces:
CS34412
DRIVE-LINE
ECC3442
EDCOR
PM14006252
JOHN DEERE
14006252
DRIVE-LINE
Crossed From:
AB2111WY125R
TISCO
W14006252DS
CASE/IH
Fits the following makes and models:
Bush Hog POST HOLE DIGGER: 2101
Land Pride POST HOLE DIGGER: PD15
Rhino POST HOLE DIGGER: HPHD
Rhino POST HOLE DIGGER: RPHD
Bondioli & Pavesi 100 Series: Size 2
