Details

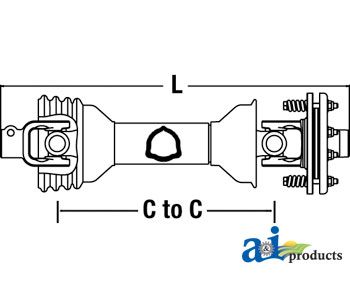

Rotary tiller driveline with friction disc clutch, size 4. Driveline rated as a category 3 (35 hp),
100 series. Driveline C-to-C length: 25" (635 mm), Max C-to-C length: 35" (900 mm), Total collapsed
length: 33" (850 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline 7.09" FF1
friction clutch. Fits Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
4
Total Collapsed Length
850 mm/ 33"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 SPL. FF1 FR.CL.
Clutch Diameter
7.09"
C to C Min
635 mm/ 25"
C to C Max
900 mm/ 35"
Series
100
Category
3 (35HP)
Cross References:
Replaces:
ECC4383S
EDCOR
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 4
