Details

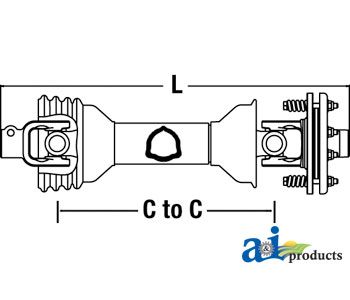

Rotor Tiller driveline with FF1 friction clutch. 100 series, category 3 (33 hp @ 540 rpm), size 4
driveline. Minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total
collapsed length: 45" (1130 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 Spline FF1
7.09" friction clutch. Driveline is a pull/tow type. Fits Bush Hog, John Deere, and Long Rotor
Tillers.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
88610
Size
4
Total Collapsed Length
1130 mm/ 45"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 SPL. FF1 FR.CL.
Clutch Diameter
7.09"
C to C Min
885 mm/ 35"
C to C Max
1310 mm/ 52"
Type
Pull/Towed
Series
100
Category
3 (35HP)
Cross References:
Replaces:
CS4090E
MISCELLANEOUS
CS43514
DRIVE-LINE
ECC4383
EDCOR
PM14106438
JOHN DEERE
14106438
DRIVE-LINE
50034239
BUSH HOG
50034244
BUSH HOG
50053125
BUSH HOG
50053126
BUSH HOG
50053132
BUSH HOG
826-021C
LAND PRIDE
Crossed From:
BW00455
JOHN DEERE
W14106438DS
CASE/IH
76735
BUSH HOG
88610
MISCELLANEOUS
Fits the following makes and models:
Bush Hog ROTOR TILLER: RTM
Bush Hog ROTOR TILLER: RTN
Bush Hog ROTOR TILLER: RTS
John Deere TILLER: TG-48
John Deere TILLER: TG-60Y
John Deere TILLER: TG-72Y
Long ROTOR TILLER: 1504
Long ROTOR TILLER: 1537
Long ROTOR TILLER: 1542
Long ROTOR TILLER: 8050
Long ROTOR TILLER: 8060
Long ROTOR TILLER: 8070
Bondioli & Pavesi 100 Series: Size 4
