CS44111 - Driveline; W/ 1 3/8" 6 Spline Qd Yokes

Qty in Stock: 45

$121.33

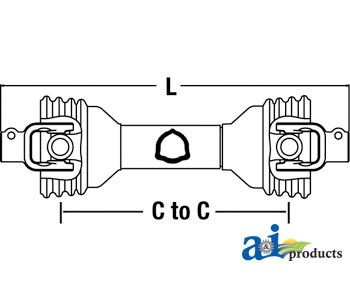

Is this the correct part for your application? Check the Part Diagrams.
Details
Complete Driveline with Quick Disconnect Yokes. Minimum C-to-C Length: 41" (1035 mm), Maximum C-to-C Length: 62" (1560 mm), Total Collapsed Length: 48" (1230 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1-3/8" - 6 Spline. Series: 100. Category 3 (35 hp). Replaces: 65628. Fits Bondioli & Pavesi, King Kutter, and Kubota. NOTE: It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
65628
Size
4
Total Collapsed Length
1230 mm/ 48"
Tractor
1 3/8" -6
Implement
1 3/8" -6
C to C Min
1035 mm/ 41"
C to C Max
1560 mm/ 62"
Series
100
Category
3 (35HP)



Cross References:

Replaces:
BP104-1010-A
EDCOR
BP104-1210-A
EDCOR
CS33911
DRIVE-LINE
CS4093226
MISCELLANEOUS
CS43811
DRIVE-LINE
D756348
DRIVELINE
ECC3321
EDCOR
ECC4422-6
EDCOR
F0398
BUHLER
F0399
BUHLER
F0400
BUHLER
F0401
BUHLER
PM14006340
JOHN DEERE
PM14006446
JOHN DEERE
PM14006448
JOHN DEERE
PM14046348
JOHN DEERE
14006340
DRIVE-LINE
14006446
DRIVE-LINE
14006448
DRIVE-LINE
14046348
DRIVE-LINE
Replaces:
171-530
DRIVELINE
50034246
BUSH HOG
50053120
BUSH HOG
50053122
BUSH HOG
826-107C
LAND PRIDE
826-140C
LAND PRIDE
826-273C
LAND PRIDE
826-297C
LAND PRIDE
826-410C
LAND PRIDE
82621
BUSH HOG
Crossed From:
AB4111WY138
TISCO
AICS33911
A & I MEGCROSS
W14006446DS
CASE/IH
W14006448DS
CASE/IH
W14046348DS
CASE/IH
65628
MISCELLANEOUS
90278
BUSH HOG



Fits the following makes and models:

King Kutter FINISHING MOWER: FM48
King Kutter FINISHING MOWER: FM60
King Kutter FINISHING MOWER: FM72
King Kutter FINISHING MOWER: FM84
Kubota ROTARY CUTTER: BL348A
Kubota ROTARY CUTTER: B342A
Bondioli & Pavesi 100 Series: Size 4
Additional Information
shipping_weight 27.4000
