Details

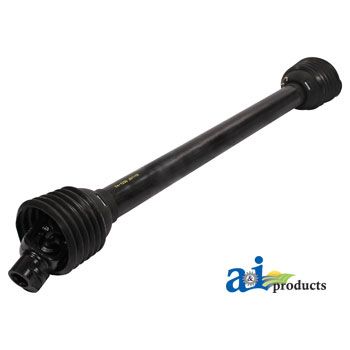

New 100 Series Economy Driveline. Driveline minimum C-to-C length: 41" (1035 mm), Maximum C-to-C
length: 62" (1560 mm), Total collapsed length: 48" (1230 mm). Tractor end: 1-3/8" 6 spline,
Implement end: 1-3/8" Round with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4.
Driveline has 6 ft. lift / 3-pt. hitch. Fits King Kutter Finishing mowers and Rotary Cutters; Rhino
and Woods Rotary Cutters.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
•
Use a grade 2 shear bolt (RCSBKT). The use of a harder grade bolt will void the warranty.
Replaces
88642, 92950
Size
4
Total Collapsed Length
1230 mm/ 48"
Tractor
1 3/8" -6
Implement
1 3/8" RB 1/2" PH
C to C Min
1035 mm/ 41"
C to C Max
1560 mm/ 62"
Type
6 ft. Lift / 3-pt. Hitch
Series
100
Category
3 (35HP)
Cross References:
Replaces:
CS33512
EDCOR
CS33514
EDCOR
CS4110
MISCELLANEOUS
CS4135
MISCELLANEOUS
CS44112
DRIVE-LINE
CS44314
DRIVE-LINE
ECC3382
EDCOR
ECC4382
EDCOR
ECC4422
EDCOR
PM14006442
JOHN DEERE
PM14006451
JOHN DEERE
00768174A
RHINO
111-60
DRIVE-LINE
112-72
DRIVE-LINE
14006442
DRIVE-LINE
14006451
DRIVE-LINE
14006459
DRIVE-LINE
3643087M91
DRIVE-LINE
40554
MISCELLANEOUS
40555
MISCELLANEOUS
Replaces:
76733
BUSH HOG
826-020C
LAND PRIDE
Crossed From:
AB4111WY
TISCO
BW14511
JOHN DEERE
W14006442DS
CASE/IH
W14006451DS
CASE/IH
88642
BUSH HOG
92950
BUSH HOG
Fits the following makes and models:
King Kutter ROTARY CUTTER: L60-HD
King Kutter ROTARY CUTTER: L72 RD
King Kutter ROTARY CUTTER: P60-HD
King Kutter ROTARY CUTTER: P72 RD
Rhino ROTARY CUTTER: SE4
Rhino ROTARY CUTTER: SE5
Woods ROTARY CUTTER: 60
Bondioli & Pavesi 100 Series: Size 4
