Details

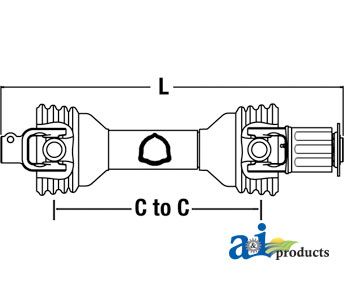

Hay tedder driveline with RP3 clutch type 2 rotor. 100 Series, category 3 (35 hp), size 4. Minimum
C-to-C length: 43" (1100 mm), Maximum C-to-C length: 67" (1700 mm), Total collapsed length: 54"
(1365 mm). Tractor end: 1-3/8" 6 spline yoke, Implement end: 1-3/8" 6 spline RP3 clutch. Fits Ford /
New Holland, Hesston, Kuhn, Lely, Long, New Idea, Otma, Panorama, Rossi, Sitrex, Tonutti, and
Zweeger Hay Tedders.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
4
Total Collapsed Length
1365 mm/ 54"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 w/ RP3 Clutch
C to C Min
1085 mm/ 43"
C to C Max
1700 mm/ 67"
Type
4-Rotor
Series
100
Category
3 (35HP)
Cross References:
Replaces:
CS34313H
EDCOR
CS34315H
EDCOR
CS44313
DRIVE-LINE
ECC3443H
EDCOR
ECC4443
EDCOR
PM14206454
JOHN DEERE
14206454
DRIVE-LINE
Crossed From:
AB4111K33
TISCO
W14206454DS
CASE/IH
Fits the following makes and models:
Claas HAY TEDDER: VOLTO 450
Claas HAY TEDDER: VOLTO 540
Ford / New Holland HAY TEDDER: 158
Ford / New Holland HAY TEDDER: 162
Ford / New Holland HAY TEDDER: 163
Ford / New Holland HAY TEDDER: 169
Ford / New Holland RAKE/TEDDER: 254
Ford / New Holland RAKE/TEDDER: 255
Hesston HAY TEDDER: 3717
Kuhn HAY TEDDER: GF4000
Kuhn HAY TEDDER: GF5000T
Kuhn RAKE: GA300GT
Kuhn RAKE: GA4101GT
Lely HAY TEDDER: LOTUS 460
Long HAY TEDDER: 2074
Long HAY TEDDER: 2075
New Idea HAY TEDDER: 4217
Niemeyer HAY TEDDER: HR361
Niemeyer HAY TEDDER: 441
Niemeyer HAY TEDDER: 451
Niemeyer HAY TEDDER: 521
Niemeyer HAY TEDDER: 531
Niemeyer HAY TEDDER: 551
OTMA HAY TEDDER: GS 4/L
OTMA HAY TEDDER: GS4
Panorama HAY TEDDER: PT170
Rossi HAY TEDDER: G4L
Rossi HAY TEDDER: G4LPE
Sitrex HAY TEDDER: ST384
Sitrex HAY TEDDER: ST520
Sitrex HAY TEDDER: 4G-384
Sitrex HAY TEDDER: 4GL-484
Tonutti HAY TEDDER: GT380
Tonutti HAY TEDDER: 440
Tonutti HAY TEDDER: 500
Tonutti HAY TEDDER: 540
Vicon HAY TEDDER: FANEX 463
Vicon HAY TEDDER: FANEX 523
Vicon HAY TEDDER: FANEX 553
Bondioli & Pavesi 100 Series: Size 4
