Details

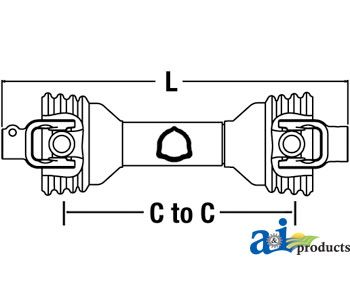

Posthole Digger Driveline Assembly, size 4. Driveline minimum C-to-C is 45" (1145 mm), maximum
C-to-C length is 71" (1800 mm), total collapsed length is 53" (1345 mm). Tractor ends: 1-3/8" 6
Spline and implement ends are 1-1/4" round bore with 3/8" pin hole. Driveline rated as category 3
(35 hp). Fits Bush Hog, Land Pride, and Rhino applications.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
4
Total Collapsed Length
1345 mm/ 53"
Tractor
1 3/8" -6
Implement
1 1/4" RB WITH 3/8" PH
C to C Min
1145 mm/ 45"
C to C Max
1800 mm/ 71"
Category
3 (35HP)
Cross References:
Replaces:
CS44512
DRIVELINE
ECC3442H
EDCOR
PM14006453
DRIVELINE
14006453
DRIVE-LINE
Crossed From:
AB4111WY125R
TISCO
W14006453DS
CASE/IH
Fits the following makes and models:
Bush Hog POST HOLE DIGGER: 2102
Bush Hog POST HOLE DIGGER: 2103
Land Pride POST HOLE DIGGER: PD25
Land Pride POST HOLE DIGGER: PD35
Rhino POST HOLE DIGGER: SPHD
Bondioli & Pavesi 100 Series: Size 4
Additional Information
| shipping_weight | 29.9600 |
|---|
