CS45515 - Driveline, Extra Long Hay Tedder

Qty in Stock: 111

$387.27


Is this the correct part for your application? Check the Part Diagrams.
Details

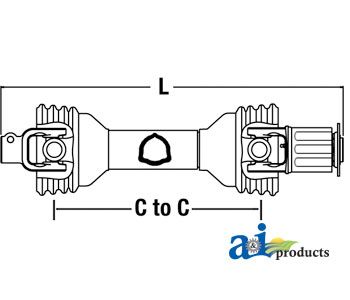

Hay tedder driveline with RP3 clutch, size 4. 100 Series, category 3 (35 hp), size 4. Minimum C-to-C length: 55" (1400 mm), Maximum C-to-C length: 82" (2080 mm), Total collapsed length: 66" (1675 mm). Tractor end: 1-3/8" 6 spline yoke, Implement end: 1-3/8" 6 spline RP3 clutch. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
4
Total Collapsed Length
1675 mm/ 66"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 w/ RP3 Clutch
C to C Min
1400 mm/ 55"
C to C Max
2080 mm/ 82"
Series
100
Category
3 (35HP)



Cross References:

Replaces:
CS45513
DRIVELINE
502700002
VERMEER



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 4
Additional Information
shipping_weight 39.5000
