Details

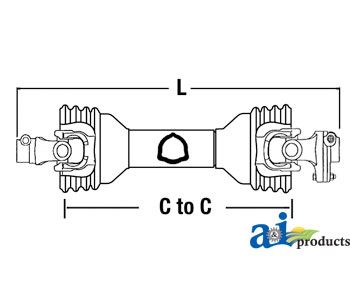

New Complete Driveline with Shear Bolt Clutch, size 5. Minimum C-to-C length: 35" (885) mm; Maximum
C-to-C length: 52" (1310 mm), Total Collapsed C-to-C length: 43" (1100 mm). Tractor end: 1-3/8" 6
Spline. Implement end: 1-3/8" 6 Spline with 8" shear bolt clutch. Fits Bondioli & Pavesi 100 Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
76734
Size
5
Total Collapsed Length
1100 mm/ 43"
Tractor
1 3/8" -6
Implement
1 3/8" - 6 w/ S.B. Clutch
C to C Min
885 mm/ 35"
C to C Max
1310 mm/ 52"
Series
100
Category
4 (47HP)
Cross References:
Replaces:
ECC5385
EDCOR
50053123
BUSH HOG
76678
DRIVELINE
Crossed From:
06-0002
A & I MEGCROSS
76734
MISCELLANEOUS
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 5
