Details

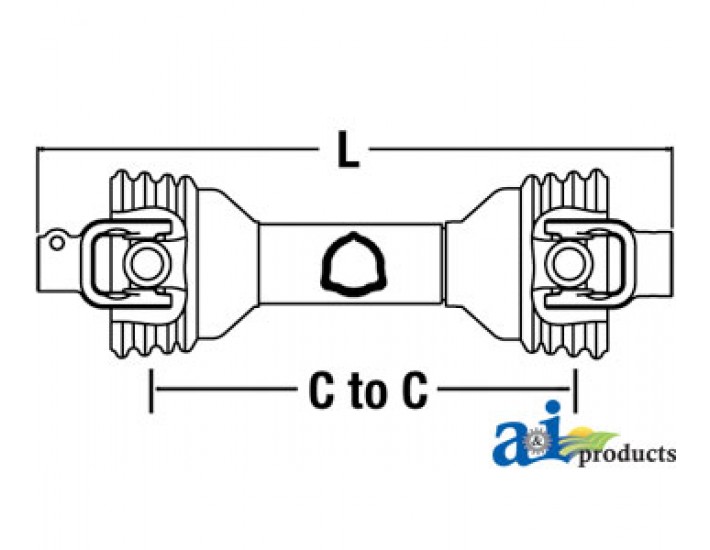

Catfish Pond Driveline Assembly, size 5. Driveline minimum C-to-C is 40" (1010 mm), maximum C-to-C
length is 62" (1580 mm), total collapsed length is 48" (1230 mm). Tractor ends: 1-3/8" 6 Spline and
implement ends are 1-1/2" round bore with 3/8" keyway. Driveline rated as category 4 (47 hp).
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Total Collapsed Length
1210mm / 48"
Implement
1 1/2" RB 3/8" KW
Cross References:
Replaces:
PM14006524
JOHN DEERE
Crossed From:
W14006524DS
CASE/IH
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 5
