Details

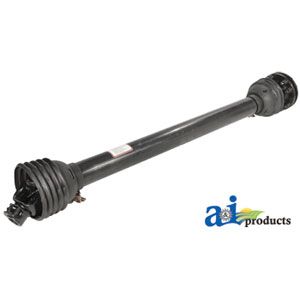

Complete Driveline with 7" Friction Clutch. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C
Length: 74" (1880 mm), Total Collapsed Length: 58" (1470 mm). Tractor end: 1-3/8" - 6 Spline.
Implement end.: 1-3/8" 21 Spline. FF1 FR. CL., Clutch Dia.: 7.09". Series: 100. Category 4 (47 hp).
Fits Bondioli & Pavesi 100 Series.
This is a complete replacement; components from original will
not interchange.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
5
Total Collapsed Length
1470mm / 58"
Tractor
1 3/8"-6
Implement
1 3/8"-21 spl. FF1 FR.CL.
Clutch Diameter
7.09"
C to C Min
1210mm / 48"
C to C Max
1880mm/ 74"
Series
100
Category
4 (47HP)
Cross References:
Replaces:
AW27989
DRIVELINE
AW30401
JOHN DEERE
AW30402
JOHN DEERE
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 5
Additional Information
| shipping_weight | 46.0000 |
|---|
 |
