Details

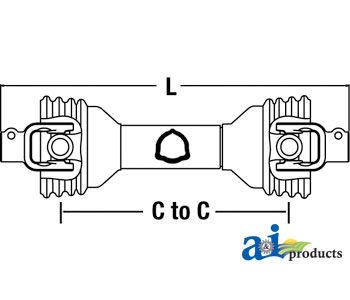

100 Series Driveline Assembly with quick disconnect yokes. Driveline minimum C-to-C is 39" (990 mm),
maximum C-to-C length is 60" (1525 mm), total collapsed length is 47" (1194 mm). Tractor and
implement end: 1-3/8" 6 Spline. Rated as a category 4 HD (64 hp), size 6. Fits Bondioli & Pavesi
models.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
6
Total Collapsed Length
1194 mm/ 47"
Tractor
1 3/8" -6
Implement
1 3/8" -6
C to C Min
990 mm / 39"
C to C Max
1525 mm/ 60"
Series
100
Category
4 HD (64HP)
Cross References:
Replaces:
CS62711
DRIVE-LINE
D756660
DRIVELINE
PM14006637
JOHN DEERE
PM14046660
JOHN DEERE
VTE1005
VAPORMATIC
14006637
DRIVE-LINE
14046660
DRIVE-LINE
Crossed From:
AICS63911
A & I MEGCROSS
W14006637DS
CASE/IH
W14046660DS
CASE/IH
11979
NORTHERN TOOL & EQ.MFG.CO.INC
Fits the following makes and models:
Bondioli & Pavesi 100 Series: Size 6
Additional Information
shipping_weight | 32.9800 |
---|
