CS64124 - Driveline, 1 3/8" 21 Spline X 1 1/2" Rb W/Kw

CS64124 - Driveline, 1 3/8" 21 Spline X 1 1/2" Rb W/Kw
$257.69

Availability: In stock

Details

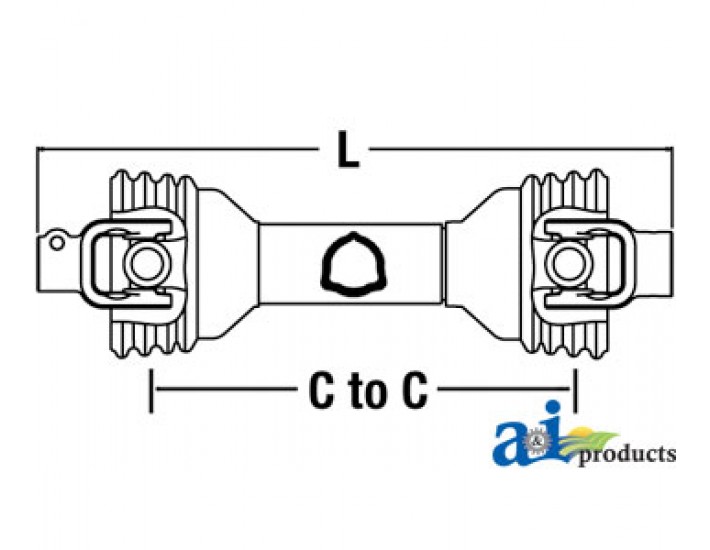

Catfish Pond Driveline Assembly, size 6. Driveline minimum C-to-C is 41" (1041 mm), maximum C-to-C length is 62" (1580 mm), and total collapsed length is 48" (1230 mm). Tractor ends: 1-3/8" 21 Spline and implement ends are 1-1/2" round bore with 3/8" keyway. Driveline rated as category 4 (100 hp).
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Size
6
Total Collapsed Length
1210mm/ 48"
Tractor
1 3/8" -21
Implement
1 1/2" RB 3/8" KW
C to C Min
1041mm/ 41"
C to C Max
1580mm/ 62"
Series
100
Category
4 HD (100HP)



Cross References:

Replaces:
PM14016624
JOHN DEERE
14016624
DRIVE-LINE
Crossed From:
W14016624DS
CASE/IH



Fits the following makes and models:

Bondioli & Pavesi 100 Series: Size 6

Additional Information

shipping_weight 47.0000
