Details

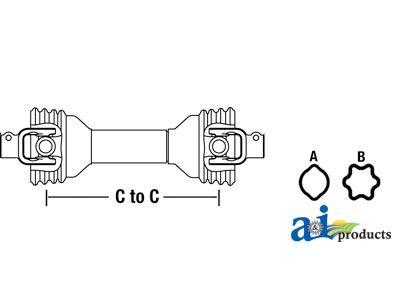

Complete Driveline with spline end yokes. Minimum C-to C Length: 48" (1210 mm), Maximum C-to-C
Length: 74" (1880 mm), Total collapsed length: 58" (1462 mm). Tractor end: 1-3/8" 21 Spline,
Implement end: 1-3/8" 21 Spline. Lemon style tubing, type A. Replaces Walterscheid No.
W240012100202. NOTE: It may be necessary to cut this driveline to length. Verify the length by
ensuring that sufficient overlap of the drive tubes exists in all working positions without the
possibility of bottoming out. Fits Walterscheid W Series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Walterscheid Part No: W240012100202
Size
2400
Total Collapsed Length
1462 MM/ 58"
Tractor
1 3/8" - 21
Implement
1 3/8" - 21
Tube Style
A
C to C Min
1210 MM/ 48"
C to C Max
1880 MM/ 74"
Cross References:
Crossed From:
SW06513
JOHN DEERE EDI
Fits the following makes and models:
Walterscheid W Series: 2400
Additional Information
| shipping_weight | 42.0000 |
|---|
 |
