Details

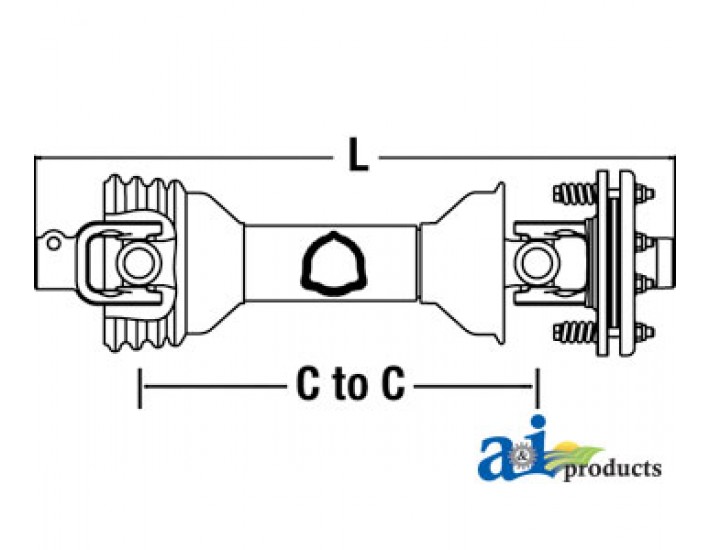

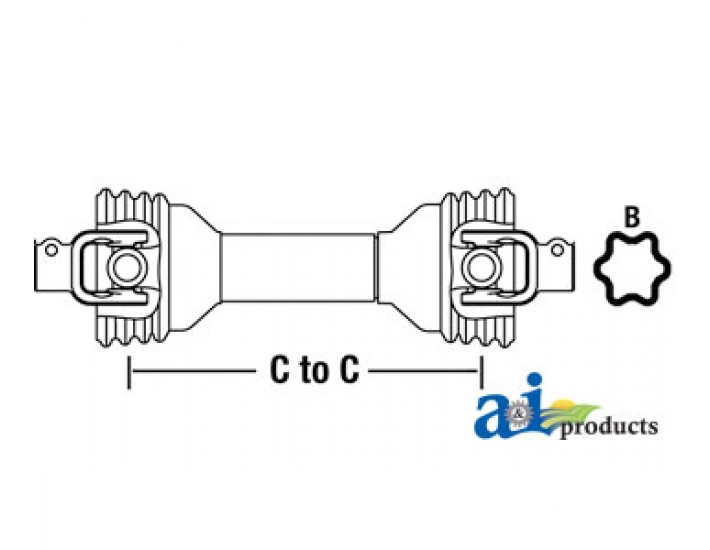

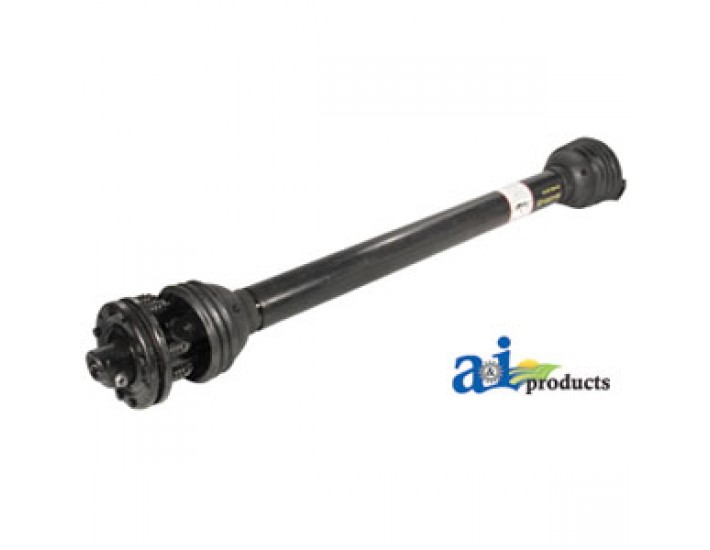

Complete Driveline with splined end yokes. Minimum C-to-C length: 48" (1210 mm); Maximum C-to-C
length: 74" (1880 mm); Tractor end: 1-3/8" 21 Spline. Implement end: 1-3/8" 21 Spline. Tube style B.
Rated category 6 (139 hp). For 2500 series. Replaces Walterscheid No. W250012100102. Fits
Walterscheid W series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Walterscheid Part No: W250012100202
Total Collapsed Length
1462 MM/ 58"
Cross References:
Crossed From:
SW06516
JOHN DEERE EDI
Fits the following makes and models:
Walterscheid W Series: 2500
