Details

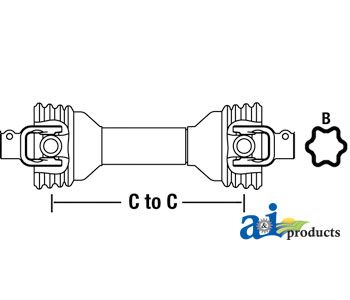

Complete Driveline with splined end yokes. Minimum C-to-C length: 48" (1210 mm); Maximum C-to-C
length: 74" (1880 mm); Tractor end: 1-3/4" 20 Spline. Implement end: 1-3/4" 20 Spline. Star style
tubing Type B. Rated category 6 (139 hp). For 2500 series. Replaces Walterscheid No. W250012100103.
Fits Walterscheid W series.
•
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient
overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Replaces
Walterscheid Part No: W250012100303
Size
2500
Total Collapsed Length
1462 MM/ 58"
Tractor
1 3/4" - 20
Implement
1 3/4" - 20
Tube Style
B
Category
6 (139HP)
C to C Min
1210 MM/ 48"
C to C Max
1880 MM/ 74"
Fits the following makes and models:
Walterscheid W Series: 2500
Additional Information
| shipping_weight | 58.2000 |
|---|
 |
